PRF-300

Radiofrequency &Plasma Surgical System PRF-300

The RF and plasma surgical system PRF-300 combines both RF mode and plasma mode, with cutting, ablation, and coagulation functions. Innovatively integrates the RF module and plasma module, perfectly achieving both functions in one product, allowing for output switching between the two functions based on clinical needs. It encompasses all the functions of P-300 and RF-100, suitable for all clinical applications of both.

Looking for a reliable plasma coblator system for ENT, sports medicine, spinal surgery, and other minimally invasive procedures? Explore our range of plasma surgery systems and find the right solution for your clinical and procurement needs.

Next Products Inquire Now

Main parameters

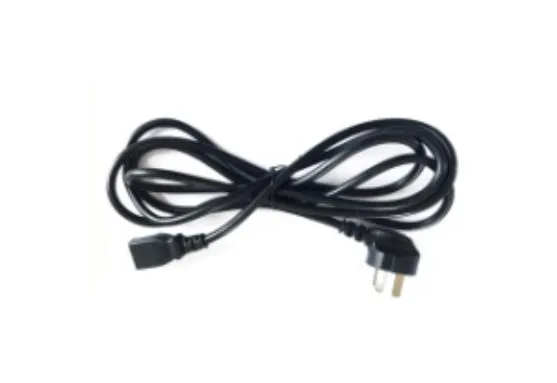

Optional accessories
Applicable departments
Clinical application

Product advantages

01

Dual-mode operation with radiofrequency and plasma technologies, enabling cutting, ablation, and coagulation functions
02

Precise low-temperature ablation minimizes tissue damage, reduces bleeding, promotes faster recovery, and prevents tissue charring
03

Accurate ablation of nucleus pulposus under transforaminal endoscopy
04

Separate display for ablation and coagulation parameters—intuitive interface for easier control
05

Adjustable power output ensures surgical precision and stable performance
06

Non-current generating design avoids nerve root stimulation, significantly reducing patient discomfort
07

Widely used in ENT, sports medicine, and spinal surgery departments

Product parameters

PRF-300 Radiofrequency & Plasma Surgical System

The PRF-300 is a 2-in-1 RF & Plasma surgical system that integrates 1.71 MHz radiofrequency technology and 100 kHz plasma technology in one platform. The 2-in-1 system supports controlled cutting, ablation, and coagulation for a range of minimally invasive surgical applications.

By combining RF and low-temperature plasma modes in one surgical generator, the PRF-300 2-in-1 RF & Plasma Surgical System gives hospitals and medical device distributors greater flexibility when different procedures require different energy delivery technologies. It is designed for applications across ENT, sports medicine, spinal surgery, pain management, orthopedics, and neurosurgery, subject to the applicable product indications and configuration.

Technical Specifications

Parameter	PRF-300 Specification
Model	PRF-300 2-in-1 RF & Plasma Surgical System
Operating Modes	Plasma and Radiofrequency
Plasma Frequency	100 kHz
Radiofrequency Frequency	1.71 MHz
Plasma Operating Temperature	40°C–70°C
Stated Output Power	100 W / 350 W
Input Power	220 V, 50 Hz
Main Functions	Cutting, Ablation, Coagulation

RF & Plasma 2-in-1 Surgical Platform

Unlike a dedicated plasma-only or RF-only generator, the PRF-300 RF Plasma Surgical System combines two energy technologies in one system. Users can select the appropriate operating mode according to the intended procedure and compatible surgical electrode.

The plasma mode operates at 100 kHz, while the radiofrequency mode operates at 1.71 MHz. The system provides adjustable output control and separate displays for ablation and coagulation parameters, helping medical professionals manage energy settings according to procedural requirements.

RF vs Plasma

	Radiofrequency Mode	Plasma Mode
Frequency	1.71 MHz	100 kHz
Main role	Cutting / Coagulation	Ablation / Cutting / Coagulation
Operating principle	Radiofrequency energy	Low-temperature plasma
Typical applications	Spine, pain management, orthopedics, neurosurgery	ENT, sports medicine
Typical procedures	RF tissue cutting/coagulation	Turbinate ablation, tonsil/adenoid procedures, arthroscopic tissue management

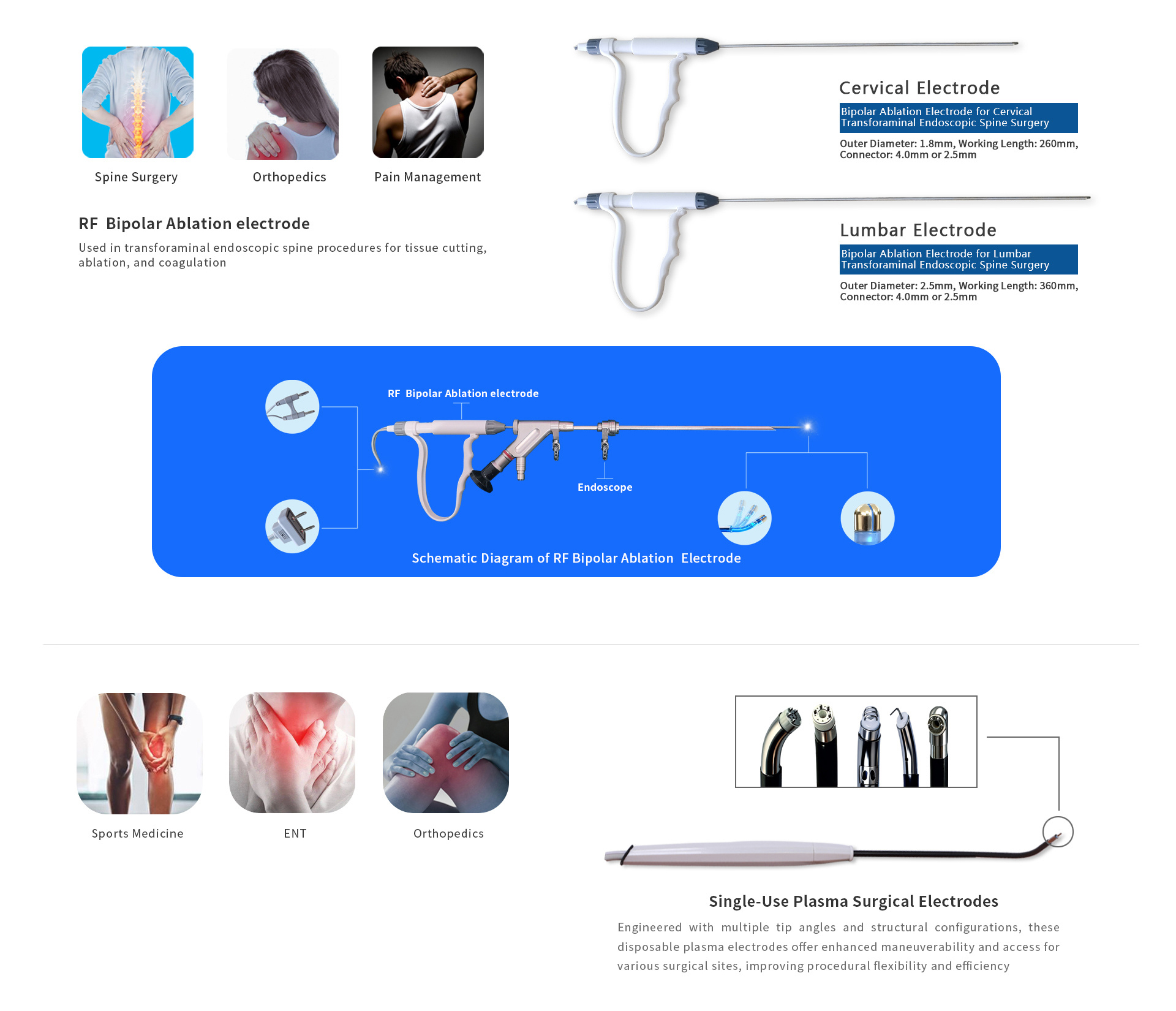

Compatible accessory	RF bipolar electrode	Plasma ablation wand

Key Features of PRF-300

Dual RF and Plasma Modes

The PRF-300 RF Plasma Surgical System integrates radiofrequency and plasma technologies in one surgical platform. The dual-mode design allows one generator to support different tissue-management requirements across multiple approved surgical applications.

Low-Temperature Plasma Ablation

The plasma mode operates within a stated working temperature range of 40°C–70°C. Low-temperature plasma technology is designed for controlled tissue ablation while limiting unnecessary thermal impact on surrounding tissue.

Cutting, Ablation and Coagulation

The PRF-300 RF Plasma Surgical System supports multiple surgical functions, including tissue cutting, ablation, coagulation, and hemostatic tissue management when used with the appropriate compatible electrode or wand.

Adjustable Energy Output

Adjustable output enables users to select suitable energy levels for different tissue-management requirements and surgical procedures.

Separate Parameter Display

Separate display information for ablation and coagulation parameters provides a clearer operating interface and allows surgical teams to monitor the selected settings during use.

Multi-Department Configuration

The combination of RF and plasma technology makes the PRF-300 2-in-1 Surgical System suitable for hospitals and medical device distributors that require one platform for multiple surgical departments rather than a dedicated generator for every application.

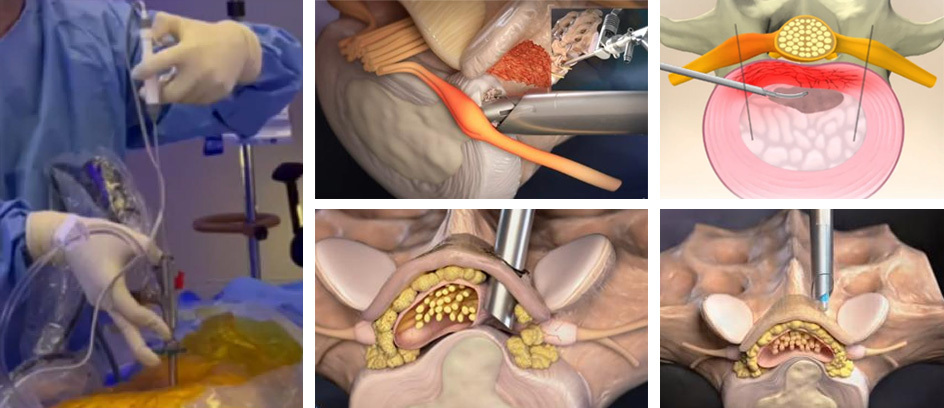

Clinical application

Radio Frequency and Plasma Surgery System PRF-300
